Meiji Techno TC-5500/5600 Inverted Epi-Fluorescence Microscope

List Price: $12,110.00

Starting at: $10,895.00

SKU: TC5500/5600

Availability: In stock

  • Infinity Corrected Optics
  • Two LWD plan fluorescent objectives
  • SWH 10x eyepieces
  • Halogen Koehler illumination + 100W Mercury
  • Binocular or trinocular
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

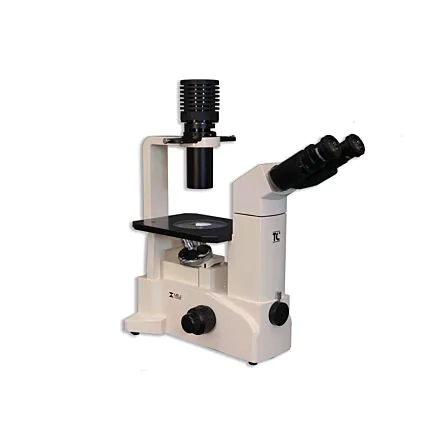

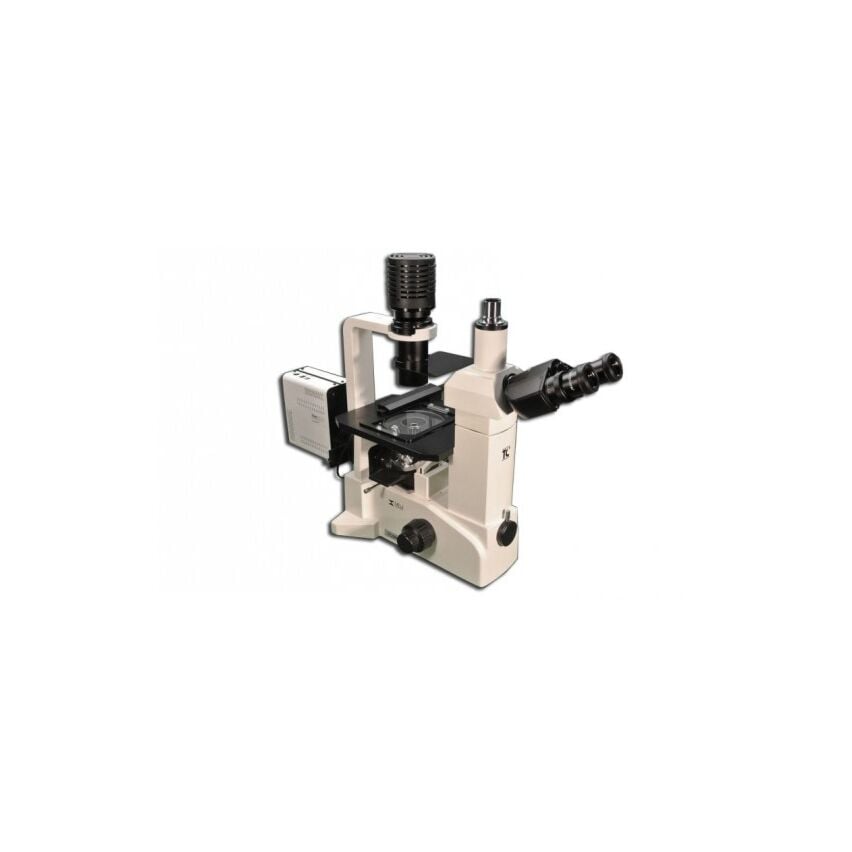

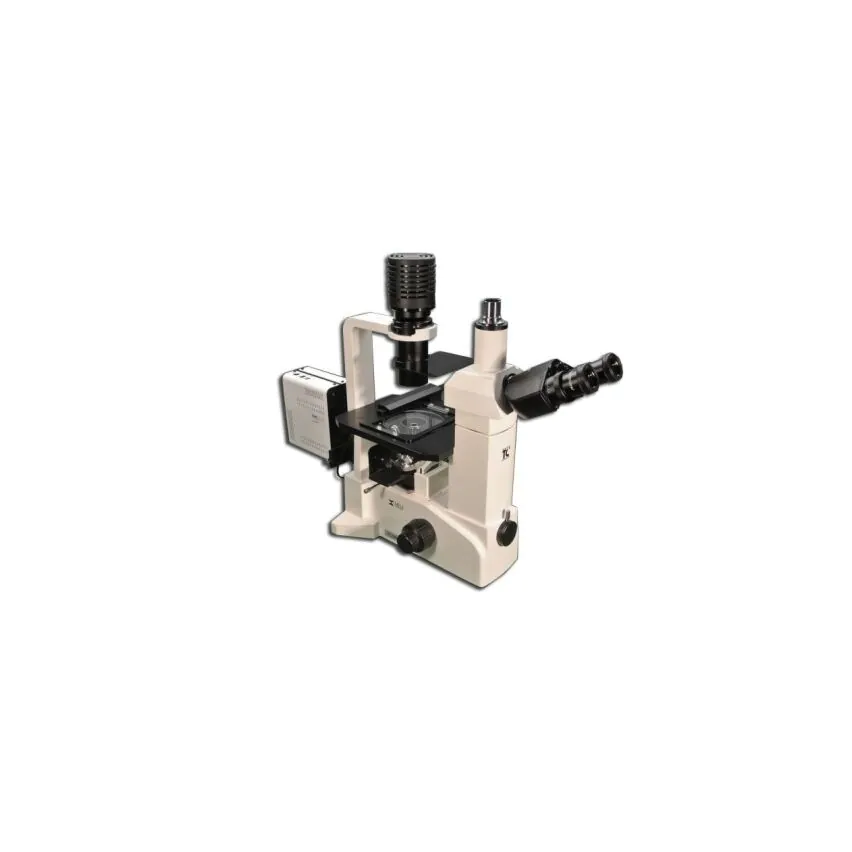

  • TC-5500/5600 Inverted Epi-Fluorescence Microscope
  • TC-5500/5600 Inverted Epi-Fluorescence Microscope back
  • TC-5500/5600 Inverted Epi-Fluorescence Microscope angle
Description

Summary

Designed for examining tissue cultures, microbes and other live specimens in petri dishes and culture bottles, the TC-5550 and 5600 models offer a cost effective and high quality inverted fluorescence microscopy solution. Infinity corrected optics include two long working distance, TC plan fluorescent objectives (F10x and F20x), mounted in a quintuple nosepiece. They combine with two SWH10x eyepieces for magnification powers of 100x and 200x. The microscope has a chemical resistant baked enamel finish.

Optics

The Siedentopf head, inclined at 30°, is available in binocular or trinocular format. Interpupilliary adjustment is 53mm to 75mm and there is a diopter on the left eyetube for individual eye focusing. Eyepieces include two SWH10x widefield high eyepoint eyepieces, FN 22 with a 25mm reticle mount. Optional eyepieces include SWH15x, SWH20x and SWH10x-F focusing. There are two long working distance TC plan fluorescent objective lenses, F10x and F20x set in a smooth, ball-bearing operated, quintuple nosepiece. Optional 4x and 40x fluorescent objectives are available.

A C-Mount camera adapter is available for the front body port of the microscope, MA877. This adapter can be used with either binocular or trinocular versions of the microscope. Please note that to mount a camera separately to the trinocular head, an adapter in the MA151/35 series may be needed.

Stage & Focus

The plain stage measures 180mm (X) x 245mm (Y) plain stage and includes a replaceable glass insert with 45mm opening. An optional mechanical stage and a variety of specimen holders are available. Focus controls are low-positioned for comfort with coaxial, coarse/fine focus knobs with adjustable tension control.

Condenser & Illumination

The condenser is an extra long working distance, NA 0.30, WD 73mm. An optional condenser, NA 0.55, WD 20.5mm is available for use with a 40x objective. 30W halogen transmitted Koehler illumination is integrated. There is also a 100W Mercury epi-fluorescence illuminator with blue and green excitation filter sets.

Accessories

Illuminator, green and blue excitation filter sets, ND 50 neutral density filter, UV protection filter, manual, dust cover

Specifications

Specifications of Component Options

Select a component below to view related specifications.

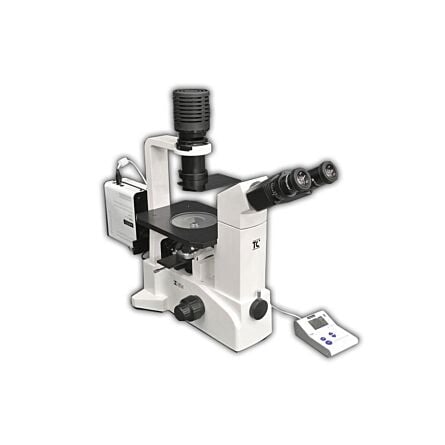

  • TC-5500 Binocular

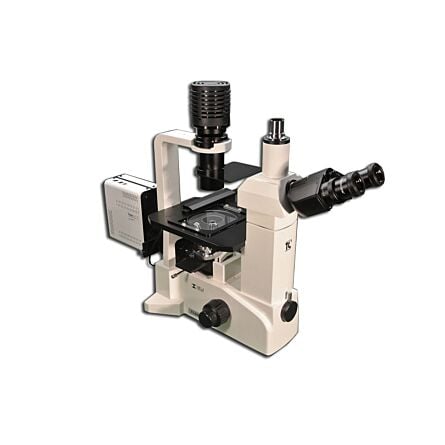

    TC-5600 Trinocular
    SKU TC5500TC5600
    Warranty Limited Lifetime WarrantyLimited Lifetime Warranty
    Product Weight 23.000023.0000
    Product Length 485 mm485 mm
    Product Width 220 mm220 mm
    Product Height 411 mm411 mm
    System
    System Type Inverted, Epi-FluorescenceBrightfield, Inverted, Epi-Fluorescence
    Optical Design Infinity CorrectedInfinity Corrected
    Head
    Head Type BinocularTrinocular
    Ocular Angle 30°30°
    Diopter Adjustment SingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 53 – 75 mm53 – 75 mm
    Trinocular Type  Switchable Beam-Split
    Trinocular Standard  23mm DIN
    View Orientation Inverted ViewInverted View
    Ocular Tube Diameter 30 mm30 mm
    Nosepiece Style Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type FixedFixed
    Stage Features GlassGlass
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 100X100X
    Max Standard Mag 200X200X
    Included Objectives (Qty) 22
    Objective Lens PlanPlan
    Included Objective Types Brightfield, Epi-Fluorescence, InvertedBrightfield, Epi-Fluorescence, Inverted
    Condenser Features Aspheric, Iris Diaphragm, Long Working Distance, Swing-out Filter HolderAspheric, Iris Diaphragm, Long Working Distance, Swing-out Filter Holder
    Condenser N.A. 0.30 mm0.30 mm
    Filter Diameter 51 mm51 mm
    Illumination
    Illumination Type HalogenHalogen
    Illumination Style Transmitted, Epi-FluorescentTransmitted, Epi-Fluorescent
    Collector Type KohlerKohler
    Collector Features Diffusion FilterDiffusion Filter
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 6V 30W6V 30W
    Transmitted Light Control VariableVariable
    Coaxial Light Type Mercury ArcMercury Arc
    Coaxial Light Specification 100W100W
    Coaxial Light Control VariableVariable
    Power Supply 110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing
    Epi-Fluorescence System Details  INSERT EPI-FLUORESCENCE DETAILS HERE
    Compatibility
    Imaging Compatibility (with adapters)  23mm
    Available Imaging Mounts 0.66X C-Mount, F-Mount, Other SLR, T-Mount0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, F-Mount, Open C-Mount (no lens), Other SLR, T-Mount
    Accessories
    Included Extras Dust CoverDust Cover
