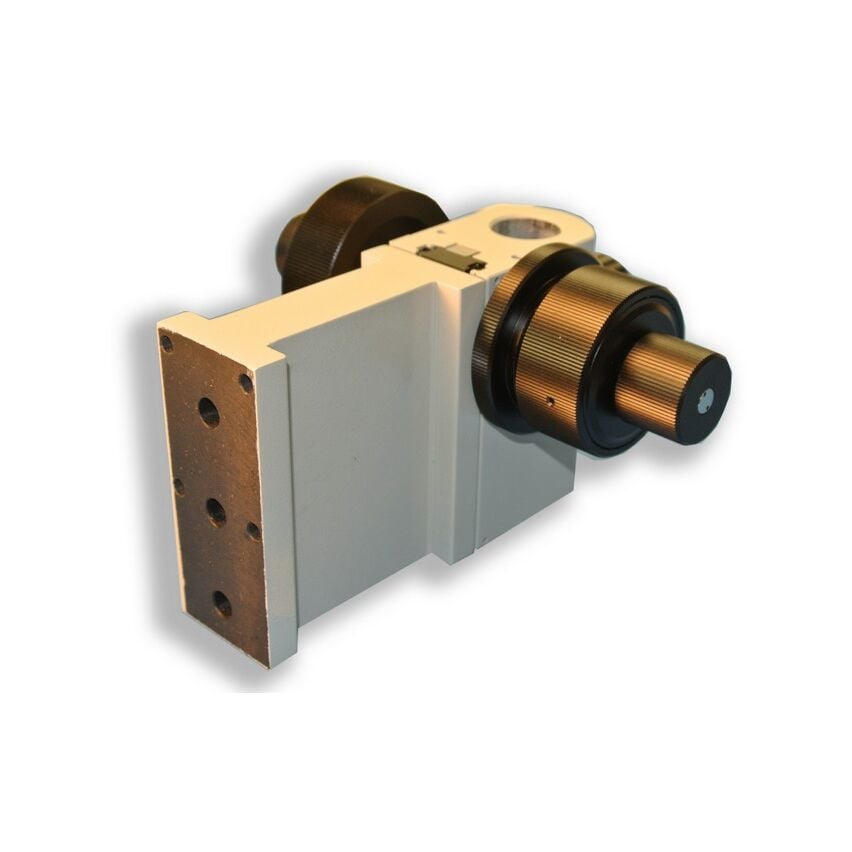

VM & VM-LED Series: High-Resolution Video Microscopes

The VM & VM-LED Series are precision-engineered video microscopes designed for high-magnification visual inspection. Whether you are analyzing small electronic components, medical devices, or fiber optics, these systems deliver the clarity and versatility required for modern factory automation and machine vision.

Optimized for Industrial & Medical Inspection

Specifically designed for viewing wave-guides, electro-mechanical assemblies, catheters, and seals, the VM Series integrates a high-performance CCD video camera with fiber optic illumination and infinity-corrected optics.

Key Features & Capabilities

• Superior Imaging: Outstanding high-resolution images with on-screen video magnification ranging from 40X to over 5500X.
• Versatile Optics: Compatible with a wide range of objectives (2.5X to 100X) and accepts infinity-corrected objectives with standard RMS threading.
• Flexible Configuration: Choose from a single objective port or optional triple/quadruple nosepieces for rapid magnification changes.
• Industrial Durability: Housed in rugged aluminum, mountable on flat surfaces, and designed for seamless machine vision integration.
• Advanced Illumination: Features fiber optic coaxial “cool light” systems with field iris and drop-in filter support.
• Portable & Compact: Self-powered camera and light source options make field portability easy, supported by a compact coarse/fine focus pole stand.

Technical Specifications

Ready to Enhance Your Inspection Process?

Contact our specialists today to configure the perfect VM Series microscope for your specific application.

VM & VM-LED Series High-Resolution Video Microscopes

The VM and VM-LED Series are precision-engineered video microscopes designed for the high-magnification inspection of intricate components, including medical devices, fiber optics, micro-electronics, and electromechanical assemblies. By integrating high-resolution infinity-corrected optics with CCD camera compatibility, these units serve as an ideal solution for machine vision and industrial automation.

Key Features

• Superior Imaging: Delivers exceptional high-resolution clarity with a wide objective range from 2.5X to 100X.
• Extreme Magnification: Achieve on-screen video magnification ranging from 40X to over 5500X.
• Flexible Optics: Features a "C" mount interface and accepts infinity-corrected objectives (RMS thread) with a 200mm focal length.
• Modular Nosepieces: Supports a single objective port or optional triple/quadruple nosepiece configurations.
• Industrial Durability: Housed in a rugged aluminum chassis designed for flat-surface mounting and seamless machine integration.
• Advanced Illumination: Equipped with fiber optic coaxial "cool light" systems and an illuminator port that supports drop-in filters.
• Precision Control: Utilizes a compact pole stand featuring both coarse and fine focus adjustments.
• Portable Design: Easily configured for field use with self-powered cameras and light sources.

Technical Specifications
