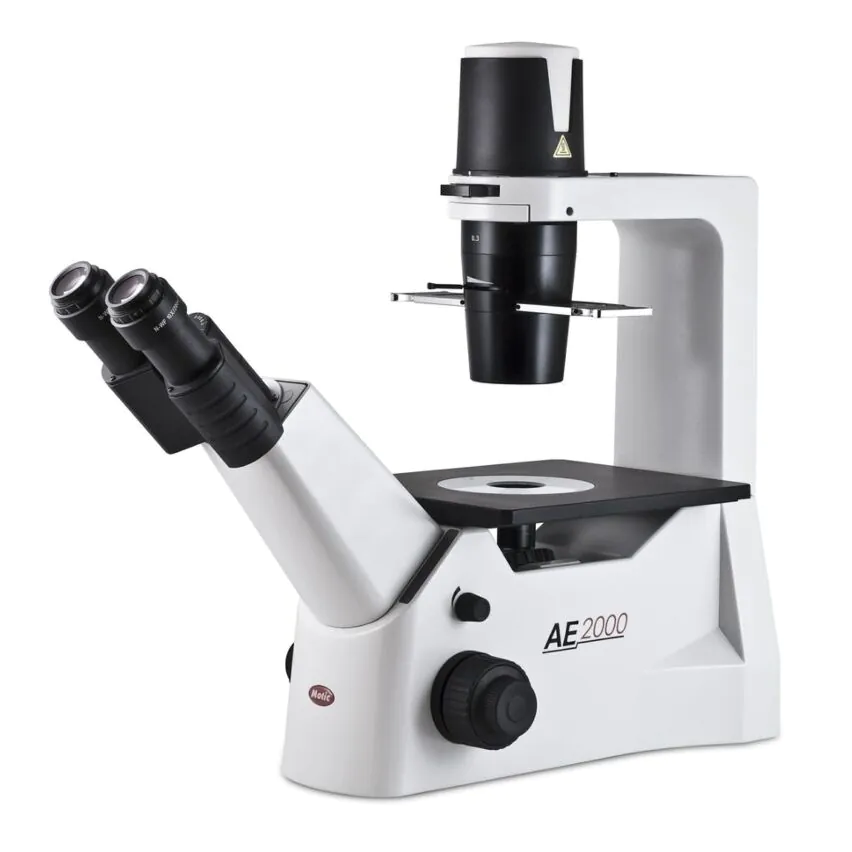

Motic AE2000 Inverted Phase Contrast Microscope

List Price: $2,289.00

Starting at: $2,060.00

SKU: AE2000

Availability: In stock

  • Infinity Corrected Optical System
  • Two Plan Phase objectives, PH4x, PH10x
  • Optional PH20X objective available
  • High Eyepoint N-WF 10x eyepieces
  • Halogen 6V30W or 3W LED illumination
  • Binocular, trinocular or ergonomic head
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

  • $629.00
  • $809.00
  • $995.00
  • $195.00
  • $139.00
  • $76.00
  • $665.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Motic AE2000 Inverted Phase Contrast Microscope
  • Motic AE2000 Inverted Phase Contrast Microscope trinocular
  • Motic AE2000 Inverted Phase Contrast Microscope ergonomic
  • Motic AE2000 Inverted Phase Contrast Microscope module
  • Motic AE2000 Inverted Phase Contrast Microscope stage
  • Motic AE2000 Inverted Phase Contrast Microscope condenser
Description

Summary

The Motic AE2000 is designed for routine laboratory or clinical work, as well as research requirements in Pharmaceutical Laboratories or Universities and delivers the sharp phase contrast performance these applications require. The proven CCIS Infinity Optical System includes two Plan Phase objectives (PH4x and PH10x) mounted in a side-facing quadruple nosepiece.

They combine with two N-WF10x eyepieces for magnification powers of 40x and 100x, and a configuration also including the Plan PH20X objective is optionally available below. In addition, uniquely integrated features include auto-power-cutoff and an optional ergonomic viewing tube. Standard 6V30W Halogen illumination can be field-converted to 3W LED, adding to a versatile and highly capable observation platform.

Optics

The Siedentopf head is inclined at a comfortable 45° and offers interpupilliary adjustment from 48mm to 75mm and include dual diopter adjustment to minimize eye strain and fatigue. The standard high eye-point FN 20 N-WF10X eyepieces will accept optional plain or graduated cross hair reticles. The Plan PH4X and PH10X Achromatic objectives feature proprietary multi-layer coating for improved light transmission, yielding significantly brighter and sharper images. They are housed in a liquid-proof, side-facing, bearing-supported quadruple nosepiece. A configuration including the PH20X is optionally available below.

Stage & Focus

The plain stage measures 200mm x 239mm and includes a replaceable glass insert with 45mm opening, along with a metal insert with a contoured cutout to provide clearance for the objectives. A mechanical stage and a variety of specimen holders are optionally available. Coaxial coarse/fine focus controls include adjustable tension control and are ergonomically-positioned for comfort and ease of operation during use.

Condenser & Illumination

The N.A 0.30 condenser features an extra long working distance and three-ring phase slide set. For additional viewing flexibility the lower portion can be removed from its dovetail mount, increasing working distance to 184mm. A centering telescope and intensity-controllable 6V30W Halogen bulb combine to produce bright, evenly-illuminated images.

For heat-sensitive applications, the AE2000 can easily be field-converted to 3W LED by replacing the Halogen bulb with an optional LED module. For added safety the AE2000 also features power-smart technology which uses an IR motion sensor to enable "sleep mode" after 15 minutes of inactivity. Normal power is restored upon the users return.

Accessories

45mm Blue, Green Interference and Diffusion filters with filter slide, Allen hex key, Manual, vinyl dust cover, universal power supply 100V-240V.

SKU MODEL MOTIC #
AE2000-B Binocular 1100103800016
AE2000-B20X Binocular with PH20X Obj. 1100103800042
AE2000-T Trinocular 1100103800025
AE2000-T20X Trinocular with PH20X Obj. 1100103800029
AE2000-E Binocular with Ergonomic Head 1100103800034
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • AE2000-B Inverted Phase Contrast Binocular

    AE2000-T Inverted Phase Contrast Trinocular

    AE2000-E Inverted Phase Contrast Binocular Ergonomic

    AE2000-B20X Inverted Phase Contrast Binocular - PH20X

    AE2000-T20X Inverted Phase Contrast Trinocular - PH20X
    SKU AE2000-BAE2000-TAE2000-EAE2000-B20XAE2000-T20X
    Warranty Limited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime Warranty
    Product Weight 23.0000
    Product Length 485 mm
    Product Width 220 mm
    Product Height 411 mm
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - MoticMAP - Motic
    System
    System Type Brightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase Contrast
    Optical Design Infinity CorrectedInfinity CorrectedInfinity CorrectedInfinity CorrectedInfinity Corrected
    Head
    Head Type BinocularTrinocularErgonomicBinocularTrinocular
    Ocular Angle 45°45°45°45°45°
    Diopter Adjustment SingleSingleSingleSingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 48 – 75 mm48 – 75 mm48 – 75 mm48 – 75 mm48 – 75 mm
    View Orientation Inverted ViewInverted ViewInverted ViewInverted ViewInverted View
    Ocular Tube Diameter 30 mm30 mm30 mm30 mm30 mm
    Body
    Nosepiece Orientation Side-facingSide-facingSide-facingSide-facingSide-facing
    Nosepiece Style Quadruple (4)Quadruple (4)Quadruple (4)Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & PinionRack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYesYesYesYes
    Stage Type FixedFixedFixedFixedFixed
    Stage Features GlassGlassGlassGlassGlass
    Stage Dimensions 200 x 239200 x 239200 x 239200 x 239200 x 239
    Configuration
    Includes Eyepieces? YesYesYesYesYes
    Included Eyepiece Quantity 22222
    Included Eyepieces (X) 10X10X10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 12.5X, 15X12.5X, 15X12.5X, 15X12.5X, 15X12.5X, 15X
    Min Standard Mag 40X40X40X40X40X
    Max Standard Mag 100X100X100X100X100X
    Included Objectives (Qty) 22233
    Objective Lens PlanPlanPlanPlanPlan
    Included Objective Types Brightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase ContrastBrightfield, Inverted, Phase Contrast
    Objective 1 Description Plan Achromat PL PH4XPlan Achromat PL PH4XPlan Achromat PL PH4XPlan Achromat PL PH4XPlan Achromat PL PH4X
    Objective 1 N.A. 0.100.100.100.100.10
    Objective 1 W.D. 12.6mm12.6mm12.6mm12.6mm12.6mm
    Objective 2 Description Plan Achromat PL PH10XPlan Achromat PL PH10XPlan Achromat PL PH10XPlan Achromat PL PH10XPlan Achromat PL PH10X
    Objective 2 N.A. 0.250.250.250.250.25
    Objective 2 W.D. 4.1mm4.1mm4.1mm4.1mm4.1mm
    Objective 3 Description  Plan Achromat LWD PL PH20XPlan Achromat LWD PL PH20X
    Objective 3 N.A.  0.300.30
    Objective 3 W.D.  4.7mm4.7mm
    Condenser
    Condenser Type Zernike PhaseZernike PhaseZernike PhaseZernike PhaseZernike Phase
    Condenser Features Aspheric, Centerable, Iris Diaphragm, Long Working DistanceAspheric, Centerable, Iris Diaphragm, Long Working DistanceAspheric, Centerable, Iris Diaphragm, Long Working DistanceAspheric, Centerable, Iris Diaphragm, Long Working DistanceAspheric, Centerable, Iris Diaphragm, Long Working Distance
    Condenser N.A. 0.30 mm0.30 mm0.30 mm0.30 mm0.30 mm
    Filter Diameter 45 mm45 mm45 mm45 mm45 mm
    Filters Included Blue, Diffusion, Green InterferenceBlue, Diffusion, Green InterferenceBlue, Diffusion, Green InterferenceBlue, Diffusion, Green InterferenceBlue, Diffusion, Green Interference
    Illumination
    Illumination Type Halogen, LEDHalogen, LEDHalogen, LEDHalogen, LEDHalogen, LED
    Illumination Style Transmitted, Phase ContrastTransmitted, Phase ContrastTransmitted, Phase ContrastTransmitted, Phase ContrastTransmitted, Phase Contrast
    Collector Type KohlerKohlerKohlerKohlerKohler
    Collector Features Diffusion FilterDiffusion FilterDiffusion FilterDiffusion FilterDiffusion Filter
    Transmitted Light Type HalogenHalogenHalogenHalogenHalogen
    Transmitted Light Specification 6V 30W6V 30W6V 30W6V 30W6V 30W
    Transmitted Light Control VariableVariableVariableVariableVariable
    Power Supply 110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing
    Available Imaging Mounts 0.66X C-Mount, F-Mount, Other SLR, T-Mount0.66X C-Mount, F-Mount, Other SLR, T-Mount0.66X C-Mount, F-Mount, Other SLR, T-Mount0.66X C-Mount, F-Mount, Other SLR, T-Mount0.66X C-Mount, F-Mount, Other SLR, T-Mount
    Accessories
    Included Extras Dust CoverDust CoverDust CoverDust CoverDust Cover

  • Moticam 3+ 3.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 5+ 5.0MP Color USB 3.0 Digital Microscope Camera

    Moticam 1080 HDMI and USB2.0 Output Digital Microscope Camera
    SKU MC3+MC5+MC1080
    Product Weight 1.00001.00001.0000
    MAP Copy MAP - MoticMAP - MoticMAP - Motic
    Sensor
    Sensor Type CMOSCMOSCMOS
    Sensor Size 1/2 Inch1/2.5 Inch1/2.5 Inch
    Color/Monochrome ColorColorColor
    Pixel Pitch 3.2um x 3.2um2.2um x 2.2um2.8um x 2.8um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressive
    Signal to Noise Ratio 43db38.1db38.1db
    Sensitivity 1,0V/Lux-sec (550nm)1,4V/Lux-sec (550nm)1,4V/Lux-sec (550nm)
    Dynamic Range 61db70.1db70.1db
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 3 Megapixel, 2048x1536 pixels5 Megapixel, 2592x1944 pixels
    Camera Output Resolutions  1920 X 1080
    FPS @ Max Res 12 fps @ 2048 x 153614 fps60fps (2.0MP) HDMI
    FPS @ Min Res 50 fps @ 512 x 38450 fps15fps (2.0MP) USB2.0
    Camera Interface USB 3.0USB 3.0USB 2.0, HDMI
    White Balance Area-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, Spot
    Black Balance ManualManualManual
    Software Included Motic Images Plus 2.0MLMotic Images Plus 3.0MLMotic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFF
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    Exposure Time 0.11 sec - 7 sec0.15msec - 5 sec
    Operating Temperatures -30°C to +70°C-30°C to +70°C
    Other Details
    Included Accessories Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube, CS Ring Adaptor, Software CD, USB 3.0 cable, Calibration Slide Micrometer.Focusable Macro Lens, C-ring, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Gooseneck/Tripod Adapter, Software CD, Calibration Slide Micrometer, USB 2.0 cable, HDMI cable, RCA Composite video cable. NOTE: Accepts Standard size SD cards.
    Supported Operating Systems Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 10, Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Environmental Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-MountC-Mount

  • C-Mount Adapter 0.35X for Motic Microscopes

    C-Mount Adapter 0.5X for Motic Microscopes
    SKU MCA-035XMCA-05X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Does not fit BinocularDoes not fit Binocular
    MAP Copy MAP - MoticMAP - Motic

  • 3W LED conversion module for AE Series (4500K)

    AE Series Universal attachable mechanical stage with well plate holders
    SKU MCLED-AE2-4.5MCA-AE Stage
    MAP Copy MAP - MoticMAP - Motic
