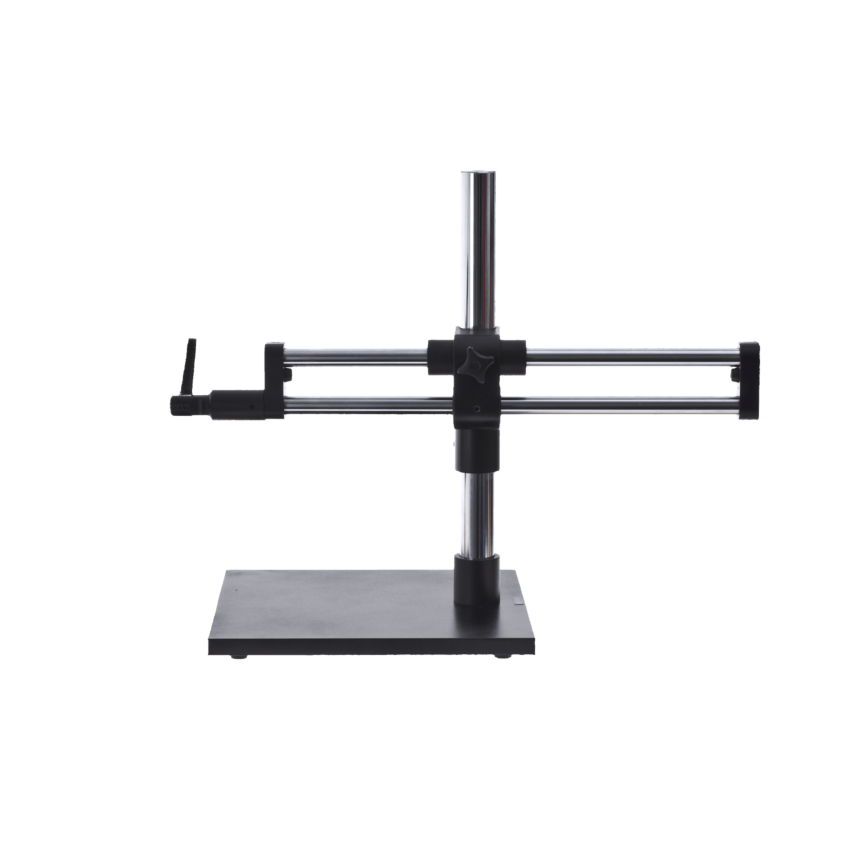

Omano V15 Boom Stand

$ 304.00

List Price: $559.00

$304.00

SKU: V15-HB

Availability: In stock

  • Precision-machined ball bearing movement
  • Wide base plate for stability
  • Stainless steel components
  • Spring loaded clevis pin
  • Included hanging bar for angled viewing
  • Heavy-duty solid metal castings
  • Limited lifetime warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano V15 Boom Stand
  • Bearings - V15U Clamp Boom Stand
Description

Stand

The V15 is our premium stand, characterized by 'continuous glide', ball-bearing motion for effortless repositioning, perfect for electronics and circuit board inspection. The boom has dual horizontal arms of solid metal alloy and measures 28 inches when extended (including the hanging bar).

It also includes several thoughtful features not seen on comparable products. A solid metal hanging bar bracket allows unlimited tilting angles of the microscope head. The counter-weight is mounted with a rubber back stop to protect the bearing housing. A neat, spring-loaded adjustment lever on the hanging bar bracket enables the lever to be moved out of the way without releasing the pre-set position of the microscope head.

The V15 boom stand provides up to 13 inches of vertical working space and includes a heavy-duty base plate for secure mounting on your workbench. An optional C-clamp is capable of securely mounting to work surfaces up to 2.5 inches thick. The overall build-quality and solid steel construction will provide a lifetime of dependable performance.

Hanging bar

Select the hanging bar appropriate for your focus ring.

  • 20mm fits Meiji Techno EMZ and EMT microscope head
  • 25mm Omano OM10k monocular zoom microscope
  • 30mm fits Omano OM99 stereo microscope
  • 32mm fits Omano OM2300S stereo microscope
Note: Microscope head and focus block sold separately.

Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • V15 Boom Stand

    V15U U-Clamp Boom Stand
    General
    Brand OmanoOmano
    SKU V15V15U
    Stand
    Stand Class BoomBoom
    Stand Type Dual Arm BoomDual Arm Boom
    Stand Features Ball-Bearing Glide, Counter-weighted, Heavy Duty, Large Base PlateBall-Bearing Glide, Counter-weighted, Tabletop U-Clamp
    Base Width 254 mm254 mm
    Base Depth 254 mm254 mm
    Post Height 464 mm464 mm
    Post Diameter 38 mm38 mm
    View Center to Post Distance 514 mm514 mm
    Physical Construction Solid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? YesYes
    Hanging Bar Style ArticulableArticulable

  • OMHB20 Hanging Bar

    OMHB25 Hanging Bar

    OMHB30 Hanging Bar

    OMHB32 Hanging Bar
    General
    Brand OmanoOmanoOmanoOmano
    SKU OMHB20OMHB25OMHB30OMHB32
    Feed - Title Omano OMHB20 Hanging BarOmano OMHB25 Hanging BarOmano OMHB30 Hanging BarOmano OMHB32 Hanging Bar
    Feed - Description StandThe V7 articulating boom arm can reach almost 3 feet yet folds into a 13 x13" space when not in use. The base plate version weighs in at 57 lb, while the optional C-clamp version weighs 25 lb. Well-balanced and stable with smooth controlled movement, it has a removable first piece of the articulating arm that achieves even greater stability. The pole stands 21" high and the articulating arm has an effective horizontal extension of 35". The C-clamp version can secure to workbenches up to 2.5 inches thick. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.Hanging barSelect the hanging bar appropriate for your focus block and microscope. 20mm fits Meiji Techno EMZ and EMT microscope head25mm Omano OM10k monocular zoom microscope30mm fits Omano OM99 stereo microscope32mm fits Omano OM2300S stereo microscopePlease note a focus block is sold separatelyFREE Post Sale telephone service with Live Human!This industrial microscope inspection system combines the vivid, high-speed response of the new 1080PU series HDMI & USB2.0 digital microscope camera with our brand new Omano VIDZ-650 6X-50X zoom inspection lens and your choice of seven different Omano boom stands.The new Optixcam OCS-HDMI-1080PU brings simultaneous HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation. Like its HDMI-output cousin (NH1080P), the 1080PU is an industrial-designed, stand-alone imaging solution offering 2.0MP still capture to an SD card or USB2.0 output, and 1080p video preview resolution with superb color reproduction and real-time frame rates of 60 fps via HDMI, or 30 fps via USB2.0 or SD card output. Camera FeaturesHDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI-1080PU offers this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory. The camera offers direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and assembly line inspection stations.Mounting & ControlsThe OCS-HDMI-1080PU is specifically designed to enhance the Omano line of stereo inspection systems, with a robust metal housing, C/CS Mount and two useful tripod screw attachment points. Improved functionality includes on-screen controls with intuitive, menu-driven buttons for RGB adjustment, White Balance, red and green cross-hair cursor symbology and Auto Exposure. Note: The SK2-CA037X camera adapter will be needed when mounting the NH1080 camera to any microscope with a smooth bore 23mm optical tube. Processing & OutputThe camera has fast white balance correction for excellent color reproduction and a 2.0MP maximum output resolution of 1920 x 1080 in BMP format. With 60 FPS live HDMI response rate, the OCS-HDMI-1080PU quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor.For researchers needing in-depth image analysis, the camera also offers traditional USB2.0 output to a pc or mac operating environment for a host of processing options including 2-dimensional measurement, image stitching, extended depth of focus, segmentation, stacking and color composition. A tethered cable enables remote capture of still images to an SD card, sold separately.Microscope FeaturesThe Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope also includes a 0.5x Barlow lens which enables maximum working distance of 6.75".Microscope StandsChoose from our most popular single-arm, dual-arm and articulating-arm microscope stands, including the V10, an economical single-arm stand with a 25" reach and a 2.5" fine-extension bar to precisely position the microscope and camera. The V6 offers the same 25" reach along with dual-arm maneuverability. The V7 expands that maneuverability to three dimensions with a spring-powered articulating arm, and the premium V15 brings 28" of fingertip effort and control, thanks to a dual-arm, machined ball bearing design.Camera AccessoriesAccessories include USB mouse, HDMI cable, USB2.0 cable, AC power supply, Software CD with manual and SDK. Camera dimensions: 3 x 2.75 X 3.6". dimensions: 10 X 6 X 3", 2 LBs.Microscope AccessoriesAccessories include OM10K zoom lens, 80LED Ring illuminator, focus block, V3 stand. details: 20 x 13 x 10", 12 Lb.Omano OMHB30 Hanging BarExclusive to Microscope.com - Ideal for Jewelers Euromex's NexiusZoom zoom stereo microscope head brings a new level of quality at a remarkably low price level. With optical quality comparable to the Olympus SZ-61 and the Nikon SMZ-645, the NexiusZoom is up to 60% cheaper and is highly recommended by Microscope.com. In this configuration, it is paired with our top of the range V15 dual arm boom stand that features 'Continuous Glide' ball bearing operation for a stereo microscope of unbeatable value.NexiusZoom OpticsWith HWF10x/22mm eyepieces, and superb optics, the NexiusZoom offers a thoroughly enjoyable viewing experience that minimizes eye strain. 0.67-45x zoom combines for standard magnification of 6.7x-45x, but remarkably, given the quality of the optics and additional lenses, the microscope can operate effectively from 3.35x-180x with full resolution. The standard field of view is 33mm-4.9mm with a working distance of 110mm. Maximum working distance is 187mm with a 0.5x barlow lens. NOTE: The NexiusZoom-Trincular microscope head features an internal beam-splitting prism system which directs light to both eyepieces and the trinocular camera port simultaneously, allowing for efficient and continuous observation and documentation. Available with binocular or trinocular microscope head. Trinocular includes 23mm smooth eyepiece adapter with optinla C-Mount adapters available.V7 Articulating StandThe V7 articulating boom arm can reach almost 3 feet yet folds into a 13 x13" space when not in use. The base plate version weighs in at 57 lb, while the optional C-clamp version weighs 25 lb. Well-balanced and stable with smooth controlled movement, it has a removable first piece of the articulating arm that achieves even greater stability. The pole stands 21" high and the articulating arm has an effective horizontal extension of 35". The C-clamp version can secure to workbenches up to 2.5 inches thick. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.Includes: NexiusZoom Microscope head, HWF10x/22 eyepieces and rubber eyecups, V7 stand, focus ring, hanging bar and dust cover.
    Feed - Custom Label 1 <100<100<100<100
    If HB Required
    Hanging Bar Style ArticulableArticulableArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm25 mm30 mm32 mm
