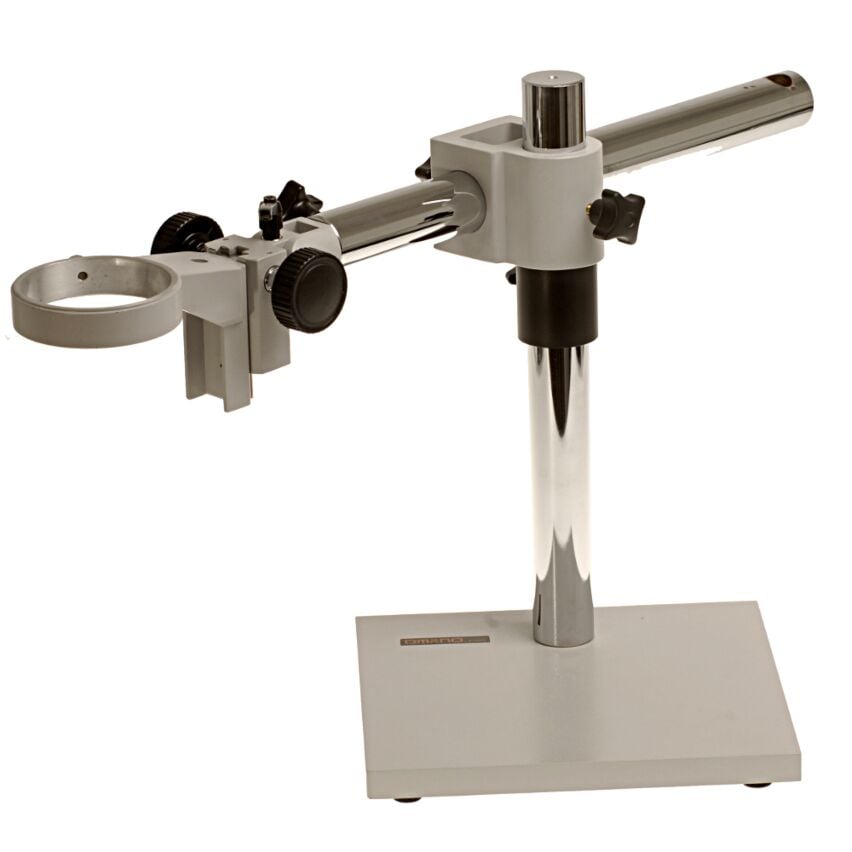

Omano JW11 Stereo Boom Stand with 84mm Focus Block

List Price: $381.00

Our Price: $219.00

$ 219.00

SKU: JW11-84

Availability: In stock

  • Machine-quality stainless steel posts
  • Wide base plate for stability
  • Included hardware and 84mm focus block
  • Heavy-duty solid-metal castings for durability
  • Industrial enamel finish

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Omano JW11 Stereo Boom Microscope Stand
  • Omano JW11 Stereo Boom Microscope Stand focus block
  • Omano JW11 Stereo Boom Microscope Stand transition piece
Description

The Omano JW11 microscope base is a popular workhorse capable of covering 23 inches of horizontal reach and 10 inches of vertical movement through 360 degrees of sweep around the vertical post. The integrated 84mm focus block will pivot to just the right angle for optimum viewing, then lock securely in place. Designed for Omano OM1030, OM2040, and Meiji Techno EMZ series stereo microscope heads.

It is a simple, solid and cost effective boom stand that is consistently popular with our electronics inspection customers who require an affordable base able to withstand the rigors of multiple users on a factory inspection line or product testing lab.



Stand assembly video:

Omano Stereo Boom Stand Comparison

0 0
Specifications

JW11 Stereo Boom Stand with 84mm Focus Block
General
Brand Omano
SKU JW11-84
Short Description
  • Machine-quality stainless steel posts
  • Wide base plate for stability
  • Included hardware and 84mm focus block
  • Heavy-duty solid-metal castings for durability
  • Industrial enamel finish
Feed - Title Omano JW11 Stereo Boom Stand with 84mm Focus Block
Feed - Description The Omano OM2040-JW11 is our most affordable, dual power Omano boom microscope. Designed for industrial inspection applications, it is available in either binocular or trinocular configuration and offers 20x/40x magnification. The JW11 is a strong, single arm boom stand that has been a proven workhorse for over ten years. A ring illumination is included. Lifetime Limited Warranty.Optics The Omano OM2040 is our most economical stereo microscope body and has proved popular over ten years. It includes 2X/4X dual power objectives and WF10X eyepieces for total magnification of 20x/40x. Each eyepiece includes a diopter for individual eye focusing and the interpupillary adjustment range is 55-75mm. Rubber eyecups are included. The head is available in both binocular and trinocular formats and a 23mm trinocular adapter for eyepiece cameras is included with the trinocular version. The effective working distance is 3.75" without an auxiliary barlow lens. Optional barlow lenses are available in 0.3x, 0.5x, 0.75x, 1.0x and 2.0x powers. Lifetime Limited Warranty.Focus & illumination Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other light when adding the microscope to your shopping cart.Stand The Omano JW11 boom stand has been a workhorse and well-proven Omano stand for over ten years. Strong and affordable, it is a single arm stand with an included 84mm focus block. The horizontal arm extension is 20" including the microscope head. The pole is 17" tall with an effective useable height of 12". The stand weighs 32lbs.Note: The NH1080 and CX3 require the OCS-SK2-CA037X C-mount adapter to connect to this Omano microscope.Accessories Eyecups, dust cover, manual Stand assembly video:
Feed - Custom Label 1 100-500
Stand
Stand Class Boom
Stand Type Single Arm Boom
Base Width 254 mm
Base Depth 254 mm
Post Height 380 mm
Post Diameter 38 mm
View Center to Post Distance 527 mm
Physical Construction Metal Tube
Coating Type (Stand) Durable Powdercoat
If HB Required
Hanging Bar Style Articulable
If FB Integrated
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Head Ring Mount Diameter 84 mm
