Meiji Techno MT-12 Entry-Level/Educational Monocular Brightfield Upright Biological Compound LED Microscope with Finite Achromatic Corrected Objectives 4X, 10X, 40X and 60X
- Versatile Magnification: Offers a range of 40x, 100x, 400x, and 600x magnification, ideal for exploring intricate biological details not visible to the naked eye.
- Student-Friendly Ergonomics: Features a simple, lightweight monocular design and a compact frame, making it easy for middle and high school students to operate and store.
- Durable Construction: Built with a rugged, ergonomic design intended to withstand years of consistent use in busy classroom or laboratory environments.
- Integrated Illumination: Equipped with its own built-in light source and multiple compound lenses to provide sharp, high-contrast views of slide-mounted specimens.
MT-430 Series Trinocular Compound Biological Microscopes
The MT-430 Series represents the pinnacle of professional laboratory imaging. Engineered for advanced research and clinical applications, these trinocular compound microscopes combine precision Plan Infinity Corrected optics with a rugged, ergonomic design. Featuring an Antimicrobial Protection Layer (APL) and a chemical-resistant finish, the MT-430 is built to withstand the rigors of high-traffic university and professional environments.
Key Performance Highlights:
- Advanced Optics: Plan Infinity Corrected Achromatic Objectives for crisp, high-resolution imaging.
- Superior Illumination: 3W NeoLED™ adjustable system provides bright, uniform light with minimal heat.
- Safe & Sanitary: APL treatment inhibits microbial growth on frequently touched surfaces.
- Ergonomic Design: Features a rackless mechanical stage and low-position coaxial focus for fatigue-free use.
Technical Specifications
| Feature | Specification |
|---|---|
| Viewing Head | Trinocular Siedentopf; 30° inclined, 360° rotatable. Adjustable interpupillary distance (48–76mm). |
| Objectives | Infinity Plan Achromat 4x, 10x, 40x, 100x (Oil). Anti-fungus treated. |
| Eyepieces | Paired HWF 10x/20mm with built-in diopter adjustment. |
| Stage | Rackless integrated X-Y mechanical stage (152/197 × 131mm). |
| Condenser | Abbe N.A. 1.25 with iris diaphragm and swing-out filter holder. |
| Focusing | Coaxial coarse/fine focus with tension control and slip-clutch safety. |
Designed for the Modern Laboratory
Ergonomics & Safety
The MT-430 series prioritizes user comfort with a carrying grip for easy transport and a Cable Storage System (CSS) to eliminate workspace clutter. The rugged cast-metal frame features a triangular footprint for maximum stability, and the integrated Kensington Security Slot protects your investment in shared facilities.
Versatile Power Options
Equipped with an internal 100-240V power supply, the MT-430 also supports cordless operation via optional rechargeable AA batteries—perfect for field work or labs with limited outlet access.
Included Accessories:
- Power cord & Dust cover
- Immersion oil & White filter
- Adjustment tools & User manual
- Warranty: Backed by Meiji Techno’s 2-year warranty.
Physical Dimensions
- In Use: 14” (L) x 8” (W) x 15.5” (H)
- Storage Mode (Head rotated 180°): 9.5” (L) x 6” (W) x 15.5” (H)

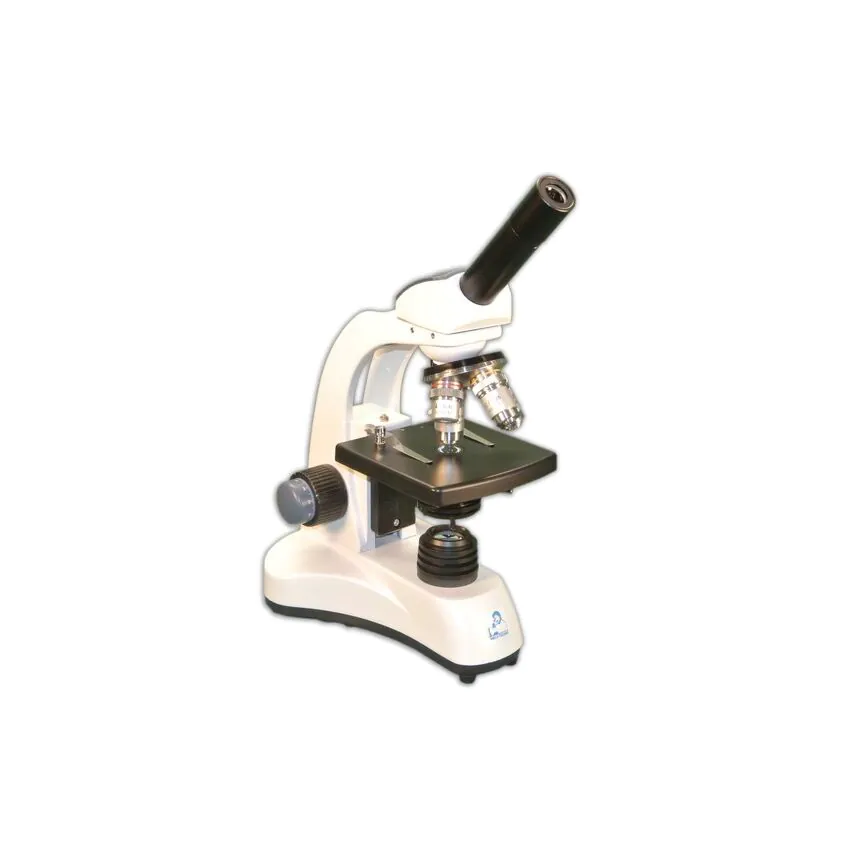

MT-12 Upright Monocular LED Biological Microscope
Professional-Grade Optics for the Next Generation of Scientists
The MT-12 Upright Brightfield Monocular LED Biological Microscope is the premier choice for beginning Life Science students and educators alike. Combining affordability with superb optical quality, this microscope delivers crisp, clear visibility of samples under cool, energy-efficient LED illumination. Designed for durability and ease of use, the MT-12 is perfect for Middle School, High School Laboratories, and hobbyists.
Whether you are examining cellular structures or teaching basic biological courses, the MT-12 provides a maintenance-free, compact solution that doesn’t compromise on precision.
Key Features & Benefits
- Superior Magnification: Range from 40x to 600x using Achromatic DIN Semi Plan objectives.
- Ergonomic Design: Low-positioned coarse and fine focus knobs and a built-in "easy-grab" handle for safe and comfortable portability.
- Advanced Lighting: Variable intensity 1W LED illumination provides consistent, cool light with low power consumption.
- Longevity & Protection: All optical components are anti-fungus treated to prevent mold growth in humid environments.
- Precision Control: Features a height-adjustable Abbe condenser (N.A. 1.25) with an iris diaphragm for optimal light contrast.
- Peace of Mind: Protected by a comprehensive 2-year warranty.
Technical Specifications
| Viewing Head | Monocular 45° inclined tube (30° Binocular models available). |
| Eyepieces | Secured DIN WF 10x/18 mm with integrated pointer. |
| Objectives | Achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65, and S60x/1.25. |
| Nosepiece | Quadruple revolving forward-facing nosepiece on ball bearings. |
| Stage | Plain 123 x 119 mm stage with 2 object clamps. |
| Focusing | Coaxial coarse and 200 µm fine adjustments; 2 µm precision with friction adjustment. |
| Digital Options | Available with built-in 1.3MP 1/2 chip CMOS USB2 Camera. |
| Warranty | 2 Years Limited Warranty |
| Customer Support | 1-(800) 832-0060 (U.S.A Based) |
| Weight | 10 lbs (4.5 kg) |
| Box Dimensions | 21 x 15 x 11 inches |
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
