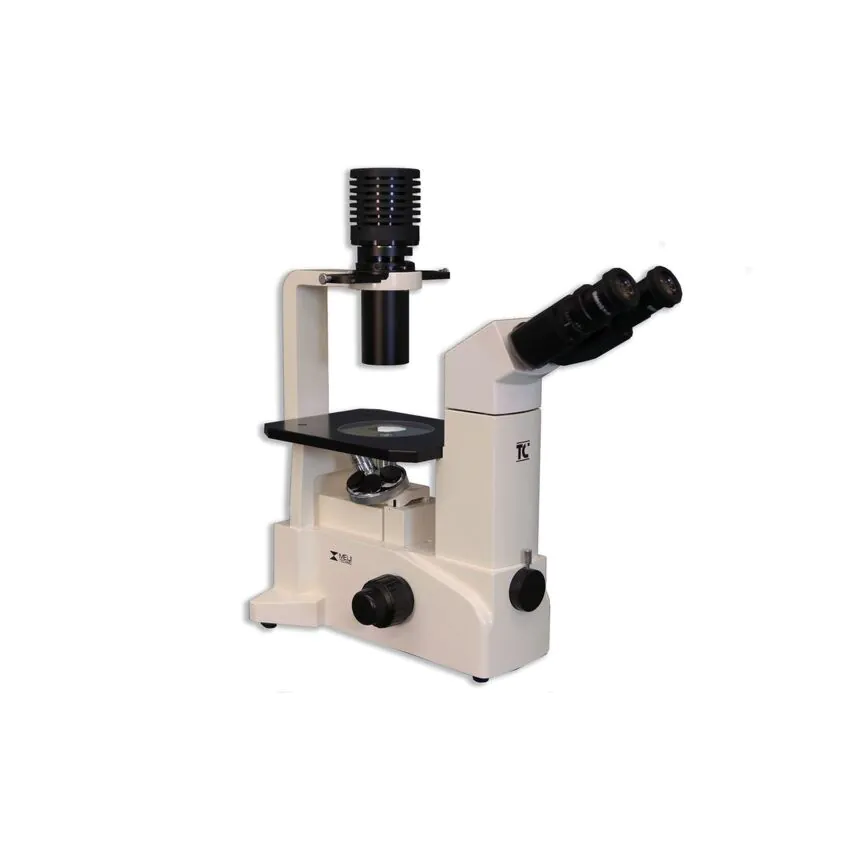

Meiji Techno TC-5300L Binocular Inverted Brightfield/Phase Contrast Biological Microscope with LED illumination
- Versatile Imaging Modes: Available in brightfield, phase contrast, and epi-fluorescence configurations to accommodate a wide range of biological applications.
- Optimized for Live Samples: Designed for fast and easy examination of tissue cultures, microbes, and specimens in petri dishes or culture bottles.
- Advanced Phase Contrast: The TC-5300 and TC-5400 models allow for high-contrast viewing of transparent living cells and sub-cellular organelles without the need for killing or staining.
- Integrated Documentation: Features a front-mounted camera port compatible with 35mm, CCD/CMOS, and digital cameras for seamless photo-microscopy and recording.
- Superior Cost-to-Performance: A cost-effective solution that delivers professional-grade optical clarity and sharp image resolution for routine laboratory use.
TC-5000 Inverted Brightfield & Phase Contrast Series
The Professional Standard for Live Cell Imaging and In Vitro Analysis
Advanced Contrast Enhancement for Living Specimens
The TC-5300 and TC-5400 Series inverted microscopes are precision-engineered for the observation of colorless, transparent specimens and live cells. By utilizing advanced phase contrast optical mechanisms, these systems translate minute variations in light phase into high-contrast images, allowing researchers to visualize sub-cellular organelles, nuclei, and microorganisms with stunning clarity.
The primary advantage of the TC-5000 series is the ability to examine living cells in their natural state. Observe biological processes in real-time without the need for killing, fixing, or staining your specimens.
Performance Features & Stability
- Exceptional Stability: Compact, wedge-shaped cast aluminum alloy frame with a small footprint and chemical-resistant baked enamel finish.
- Superior Illumination: Equipped with a precentered LED transmitted lamp for cool, consistent light and a Mercury Lamp Incident illuminator for versatile applications.
- Ergonomic Viewing: Choose between a Siedentopf-type binocular head (30° inclination) or a trinocular head (45°) for imaging requirements.
- Versatile Stage Design: Large 180mm x 245mm stage with a replaceable glass insert and transparent plate for easy objective identification.
- Precision Focusing: Low-profile coaxial coarse and fine focus controls with integrated tension adjustment.
Optimized Observation Techniques
Phase Contrast Microscopy
Ideal for thin tissue slices, lithographic patterns, and living cultures. This technique converts invisible phase shifts into visible brightness variations, revealing the internal structures of transparent specimens that would be invisible under standard brightfield conditions.
Brightfield Microscopy
The standard for transmitted light microscopy. Sample contrast is created by the absorbance of light in dense areas, resulting in a dark sample set against a bright, clear background.
Technical Specifications
| Feature | Specification |
|---|---|
| Optical System | Brightfield & Phase Contrast Modes |
| Condenser | N.A. 0.30 Condenser |
| Stage Dimensions | 180mm(X) x 245mm(Y) with 45mm opening |
| Power Supply | Integrated Automatic Voltage Sensing (Global Compatibility) |
| Camera Ports | Front-mounted support for CCD, Analog, or SLR cameras |
| Modular Options | Mechanical stage with specimen holders; Exchangeable observation tubes |
Modular & Expandable Design
The TC-5000 series is built with a flexible modular design. As your research grows, the system expands with you. From front-mounted camera ports for seamless photomicrography to optional mechanical stages, this microscope is a long-term solution for demanding laboratory environments.
Request a Quote for the TC-5000 Series
Enhance your diagnostic and research capabilities with Japanese precision engineering.
Contact Meiji Techno America: 1-(800) 832-0060
Meiji Techno TC-5000 Series Inverted Microscopes
The TC-5000 Series represents Meiji Techno’s high-performance inverted solutions for biological, clinical, and research applications, featuring Infinity Corrected Optical Systems (ICOS) and modular configurations.
Model Comparison & Selection
| Model | Type | Head | Illumination | Objectives (Nosepiece) | Condenser |
|---|---|---|---|---|---|
| TC-5100 | Brightfield | Binocular | Koehler 6V 30W Halogen (w/o iris) | Quintuple; LWD 10X & 20X | TC Condenser WD 73mm NA 0.30 or TC Condenser2 WD 20.5mm NA 0.55 |
| TC-5100E | Brightfield | Ergonomic Binocular | |||
| TC-5200 | Brightfield | Trinocular | |||
| TC-5300(L) | Phase Contrast | Binocular | Koehler w/ Phase Slider 6V 30W Halogen | TC Planachromat F10X, F20X | |
| TC-5300E(L) | Phase Contrast | Ergonomic Binocular | |||
| TC-5400(L) | Phase Contrast | Trinocular | |||
| TC-5500 | Epi-Fluorescent | Binocular | 100W Mercury + Koehler 6V 30W Halogen | Quintuple Nosepiece | Standard WD 73mm NA 0.30 |
| TC-5600 | Epi-Fluorescent | Trinocular |
TC-5300L System Components
- Microscope Body: TC-5300L Inverted Phase Contrast/Brightfield Compound Microscope with Infinity Corrected Optical System (F-200MM).
- Viewing Head: MA814 Siedentopf binocular, 30° inclined, 53mm-75mm interpupillary adjustment.
- Eyepieces: Paired MA817 SWH10X Super Widefield High Eyepoint (F.N. 22).
- Objectives: TC LWD Planachromat Phase 10X (MA826) and 20X (MA827).
- Condenser: MA853 ELWD Condenser (N.A. 0.30, W.D. 73mm) with MA855 Phase Slider.
- Stage: 180mm x 245mm plain stage with MA878 Glass Stage plate insert.
- Filters: MA861 Green Interference (546nm) and MA863 Cobalt Clear.
- Accessories: MA458/05 Centering telescope, dust cover, and instruction manual.
Key Features
Optics & Viewing
Features an 80/20 beamsplitter in trinocular models for simultaneous photo-microscopy. All heads offer 30° inclination and graduated diopter settings for user comfort.
Mechanical Stage (Optional)
Supports a variety of holders including 35mm/55mm/65mm petri dishes, Terasaki plates, 1" x 3" slides, and Hemacytometers.
Manufacturing: 100% MADE IN JAPAN | Warranty: LIMITED LIFETIME WARRANTY
Shipping Weight: Approx. 35 lbs (15.8 kg) | Box Size: 19 x 15 x 25 inches
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
