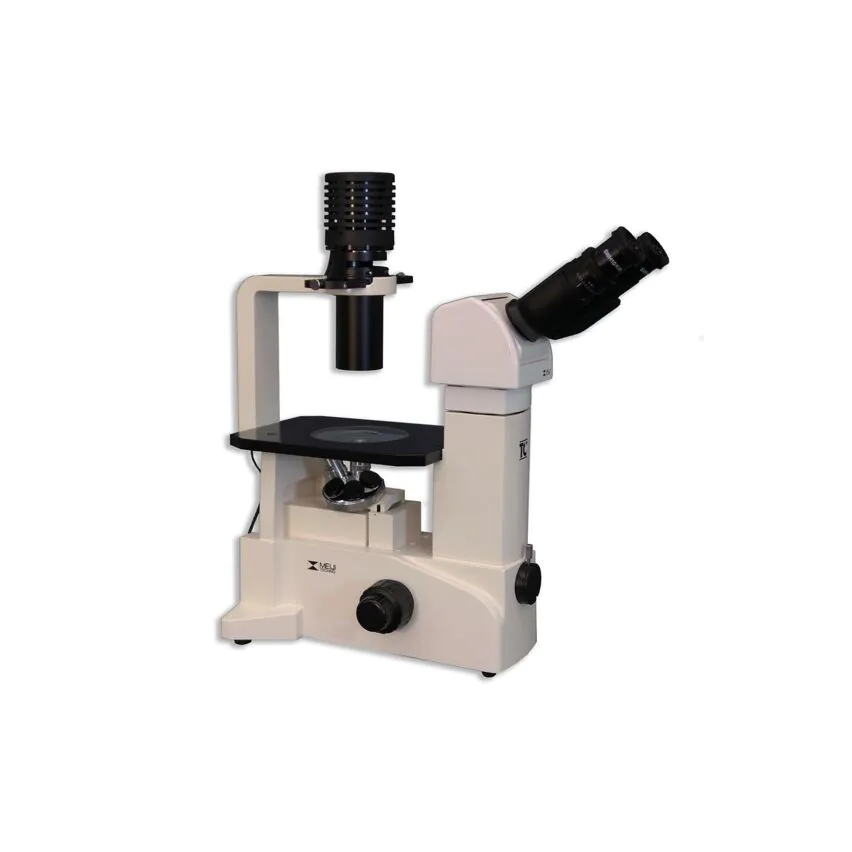

Meiji Techno TC-5300E 100X, 200X Ergonomic Binocluar Inverted Brightfield/Phase Contrast Biological Microscope
SKU:
TC-5300E
In stock
You pay: $7,360.00
Free Shipping,
30 Day Money Back Guarantee
- Versatile Imaging Modes: Available in Brightfield, Phase Contrast, and Epi-fluorescence models to accommodate a wide range of biological applications.
- Live Cell Optimization: Engineered for high-contrast viewing of transparent specimens, such as tissue cultures and microorganisms, without the need for staining or fixing.
- Advanced Phase Contrast: Features contrast-enhancing optics that translate minute phase variations into sharp, high-amplitude images of sub-cellular organelles.
- Integrated Camera Support: Includes a front-mounted camera port with available adapters for HDMI, CMOS/CCD, and 35mm cameras for seamless documentation.
- Ergonomic & Cost-Effective: Delivers an excellent performance-to-cost ratio, making routine examination of petri dishes and culture bottles fast and easy.
TC-5000 Series Inverted Microscope Comparison
| Model | Head Type | Observation | Illumination | Objectives |
|---|---|---|---|---|
| TC-5100 | Binocular | Brightfield | 6V 30W Halogen | LWD Plan 10X, 20X |
| TC-5100E | Ergonomic Binocular | Brightfield | 6V 30W Halogen | LWD Plan 10X, 20X |
| TC-5200 | Trinocular | Brightfield | 6V 30W Halogen | LWD Plan 10X, 20X |
| TC-5300/E | Binocular / Ergonomic | Phase Contrast | 6V 30W Halogen w/ Phase Slider | LWD Phase 10X, 20X |
| TC-5400 | Trinocular | Phase Contrast | 6V 30W Halogen w/ Phase Slider | LWD Phase 10X, 20X |
| TC-5500 | Binocular | Epi-Fluorescent | 100W Mercury + 6V 30W Halogen | Planachromat F10X, F20X |
| TC-5600 | Trinocular | Epi-Fluorescent | 100W Mercury + 6V 30W Halogen | Planachromat F10X, F20X |
Product Overview
The TC-5000 Series is a 100% Made in Japan line of inverted microscopes featuring Infinity Corrected Optical Systems (ICOS). Designed for high-end clinical and research applications, these units offer superior clarity for Brightfield, Phase Contrast, and Epi-Fluorescence observation.
TC-5300E: Included Components
- Head: Ergonomic Siedentopf Binocular (10° to 50° inclination)
- Eyepieces: Paired SWH10X Widefield (FN 22)
- Objectives: LWD Plan Phase 10X & 20X (Infinity Corrected)
- Condenser: ELWD N.A. 0.30, W.D. 73.0mm
- Stage: Plain Stage (180mm x 245mm) with Glass Insert
- Filters: Green Interference (546nm) & Cobalt Clear
- Accessories: Centering Telescope, Phase Slider, Dust Cover
- Warranty: Limited Lifetime Warranty
Key Features
- Versatile Viewing Heads: Choose between standard 30° inclined heads or Ergonomic heads adjustable from 10° to 50°. Trinocular models feature an 80/20 beamsplitter for simultaneous imaging.
- High-Performance Optics: Quintuple ball-bearing nosepiece with Planachromat Infinity Corrected objectives.
- Advanced Stage Options: Standard plain stage with optional mechanical attachable stage supporting 35mm/55mm/65mm Petri dishes and 96-well Terasaki plates.
- Documentation Ready: Seamless integration with HDMI, USB 2.0, and CMOS cameras for high-resolution photomicrography.
Package Info: Weight: 23 lbs | Box Size: 16" x 14" x 21" | Footprint: 364mm (D) x 220mm (W)
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
