Superior Imaging with Upgraded LWD UC Plan Optics

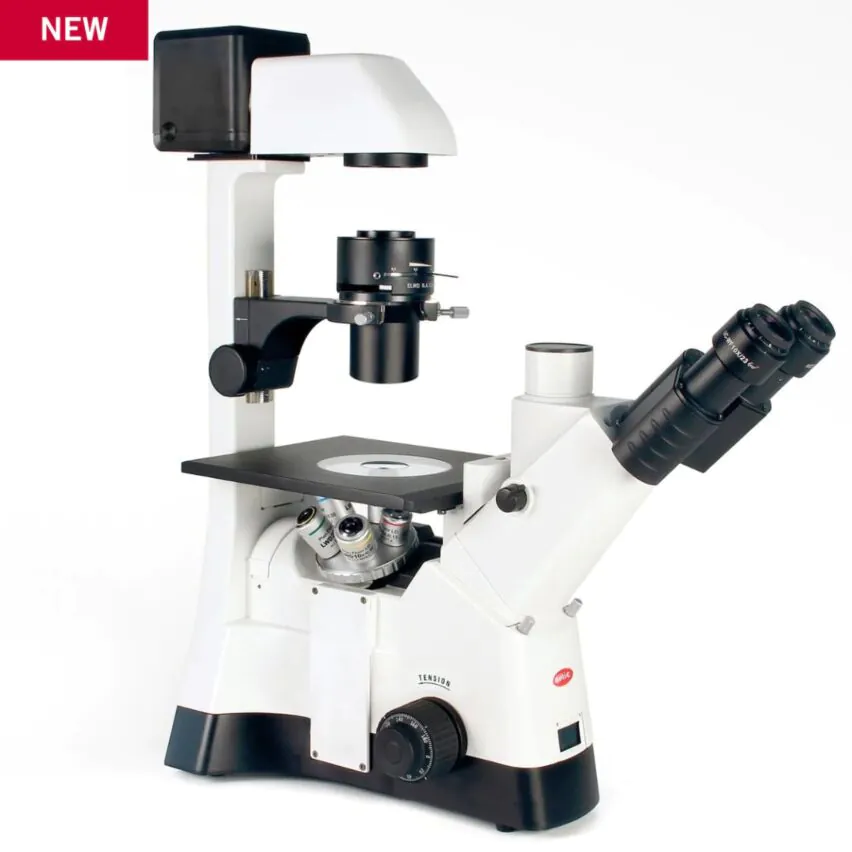

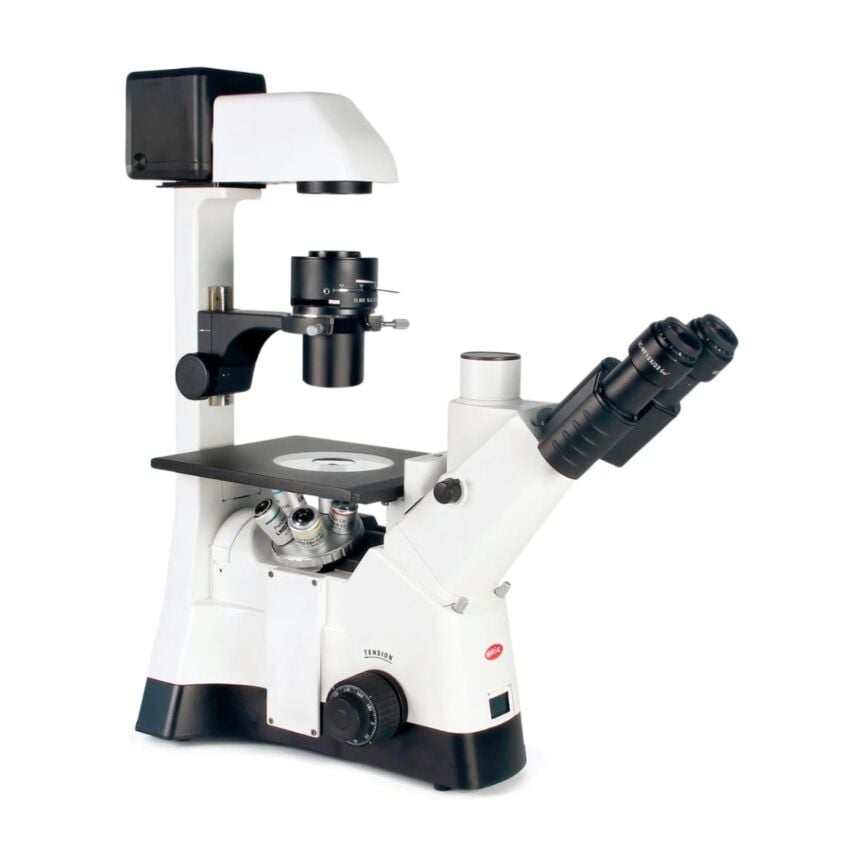

The PX43 BIO has been reimagined for the modern laboratory. Now upgraded with new and improved Long Working Distance (LWD) UC Plan objectives, this inverted system provides unparalleled clarity for both Brightfield and Phase Contrast observation. Designed specifically for the demands of live cell imaging, the PX43 BIO balances high-resolution optics with user-centric ergonomics.

Core Features & Advantages

1. New LWD UC Plan Objectives

Achieve crisp, high-contrast images through various vessel thicknesses. The upgraded objectives are optimized for both routine screening and complex cellular analysis.

2. 72mm Large Working Distance

The generous 72mm working distance provides ample room for a wide variety of cell culture containers, including flasks, Petri dishes, and multi-well plates.

3. Intelligent Coded Objective Turret

The PX43 BIO features a 5-hole coded turret that communicates with imaging software to provide:

• Automatic Scale Calibration: No more manual input for measurements.
• Data Traceability: Magnification info is automatically embedded in saved images.
• Streamlined Workflow: Reduce human error during high-throughput sessions.

4. Flexible Transmitted Light Sources

Customize your illumination:

• 10W LED: Stable, cool color temperature with low heat—ideal for sensitive live cells.
• 50W Halogen: High-intensity illumination for specialized staining.

Technical Summary
