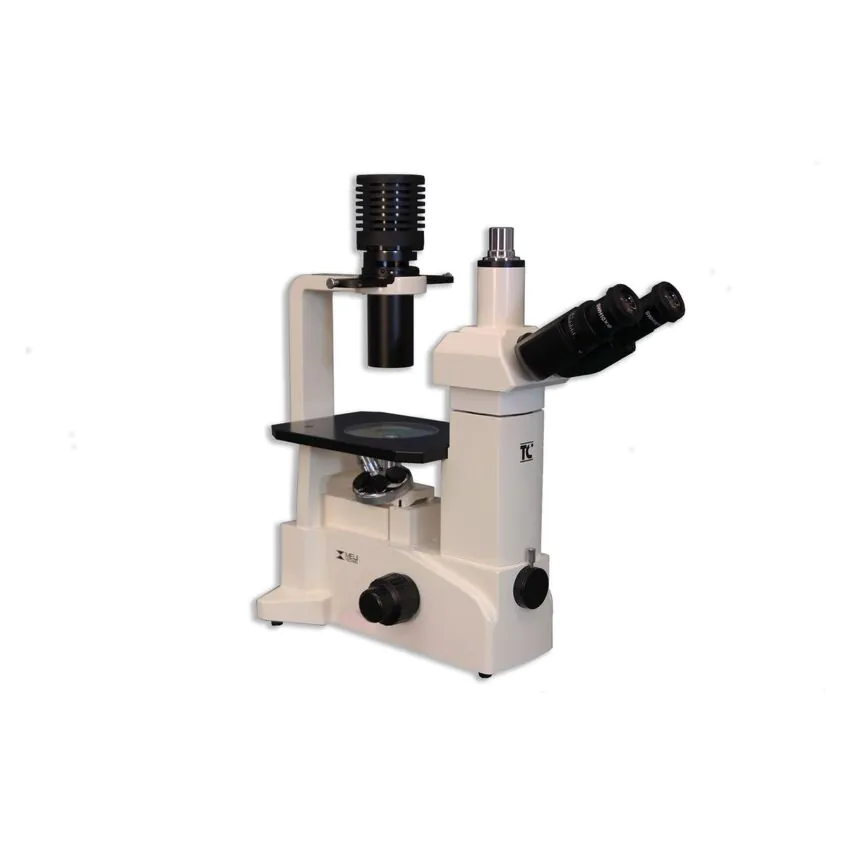

Meiji Techno TC-5400L Binocular Inverted Brightfield/Phase Contrast Biological Microscope with LED Illumination
SKU:
TC-5400L
In stock
You pay: $7,530.00
Free Shipping,
30 Day Money Back Guarantee
- Specimen-Safe LED Illumination: Features a cost-effective LED system that generates no heat, ensuring live specimens and tissue cultures remain unstressed during routine examination.
- High-Contrast Phase Contrast Optics: Specifically designed to translate minute phase variations into sharp images, allowing for the observation of transparent living cells and organelles without the need for killing or staining.
- Versatile Imaging Capabilities: Available in brightfield, phase contrast, and epi-fluorescence models, with an integrated front-mounted camera port compatible with HDMI, CCD/CMOS, and 35mm adapters.
- Efficient Laboratory Workflow: Optimized for fast and easy viewing of specimens in petri dishes and culture bottles, offering a superior performance-to-cost ratio for biological research and clinical applications.
TC-5000 Series Inverted Microscope Specifications
| Model | Head Type | Illumination | Objectives | Condenser |
|---|---|---|---|---|
| TC-5100 / TC-5100E | Binocular / Ergonomic Binocular | Koehler LED (Brightfield) | LWD 10X & 20X | WD 73mm (NA 0.30) or WD 20.5mm (NA 0.55) |
| TC-5200 | Trinocular | Koehler LED (Brightfield) | LWD 10X & 20X | WD 73mm (NA 0.30) or WD 20.5mm (NA 0.55) |
| TC-5300 / TC-5300E | Binocular / Ergonomic Binocular | LED w/ Phase Slider | LWD Phase 10X & 20X | WD 73mm (NA 0.30) |
| TC-5400 / TC-5400L | Trinocular | LED w/ Phase Slider | LWD Phase 10X & 20X | WD 73mm (NA 0.30) |
| TC-5500 / TC-5600 | Binocular / Trinocular | 100W Mercury Epi-Fluorescent + LED Transmitted | TC Planachromat F10X, F20X | WD 73mm (NA 0.30) or WD 20.5mm (NA 0.55) |
Standard Features
- Viewing Heads: Siedentopf-type design inclined at 30°. Trinocular models feature an 80/20 beamsplitter for simultaneous observation and photo-microscopy.
- Optical System: Infinity Corrected Optical System (ICOS) F-200MM with a quintuple smooth-operating nosepiece.
- Eyepieces: SWH10X Widefield (FN 22). Optional 15X and 20X available.
- Stage: Plain fixed stage (180mm x 245mm) with replaceable glass insert. Optional mechanical stage available for petri dish and slide holders.
- Manufacturing: 100% Made in Japan with a Limited Lifetime Warranty.
TC-5400L Package Includes:
- Trinocular Head (MA816/10)
- SWH10X Eyepieces (Paired)
- Phase 10X & 20X LWD Objectives
- ELWD Condenser (WD 73mm)
- Phase Slider & Centering Telescope
- Green & Cobalt Clear Filters
- Glass Stage Plate Insert
- Dust Cover & Power Cord
Shipping Weight: ~35 lbs (15.8 kg) | Box Size: 19" x 15" x 25"
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
