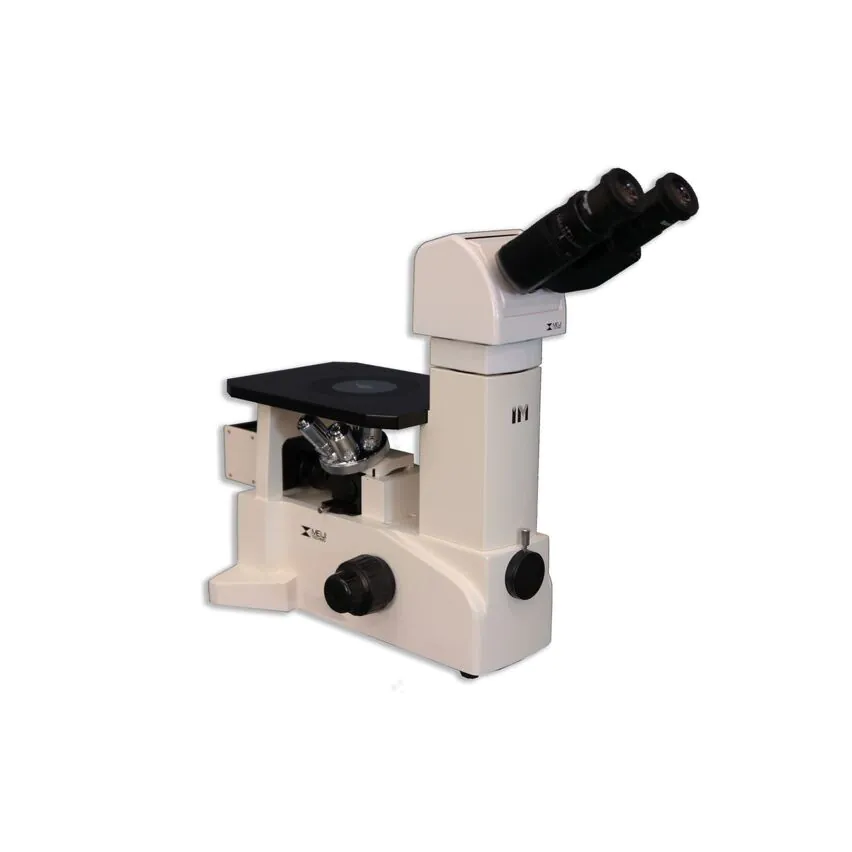

Meiji Techno IM7100E Metallurgical Ergonomic Binocular Brightfield Inverted Compound Microscope with Infinity Corrected Plan EPI E5X, E10X, E20X, E50X and Vertical Koehler Halogen Light
SKU:
IM7100E
In stock
You pay: $8,130.00
Free Shipping,
30 Day Money Back Guarantee
- Superior Optical Performance: Equipped with Meiji’s Infinity Corrected Optical System and Planachromat EPI objectives (5X, 10X, 20X, 50X) for crisp, distortion-free metallurgical imaging.
- Advanced Illumination: Features a 30W Vertical Koehler Halogen system (LED optional) supporting both Brightfield and Darkfield modes for detailed microstructure and defect evaluation.
- Robust & Ergonomic Design: Built on a vibration-resistant cast-aluminum frame with a spacious 245mm × 180mm mechanical stage and coaxial coarse/fine focusing for maximum precision.
- Extensible Documentation: Includes a dedicated 23.2mm trinocular photo port and quick-insert polarizer slider, allowing for seamless digital archiving and polarized light analysis.
Components & Accessories
Included Components
| Part Number | Description |
|---|---|
| IM7100E | Ergonomic Binocular Inverted Brightfield Metallurgical Compound microscope (6V/30W Halogen, Quintuple nosepiece). |
| MA957/20 | Ergonomic binocular Siedentopf head (10° to 50° inclination, erect image). |
| MA817 (x2) | SWH 10X Widefield high eyepoint eyepieces, FN 22. |
| MA870 – MA873 | Infinity Corrected Planachromat Objectives: 5X, 10X, 20X, and 50X. |
| Filters | Includes Blue (MA475/05), Green (MA476), Neutral Density (MA774), and Polarizing (MA497). |
| Stage & Focus | 180mm x 245mm Plain stage; Coaxial coarse and fine focus knobs. |
| Accessories | Dust cover (MA714), Power cord, 6V 30W Halogen bulb, and instruction manual. |
Optional Components & Accessories
| Category | Part Number & Description |
|---|---|
| Viewing Heads |
• MA816/15: Trinocular head (30°, 80/20 beamsplitter) • MA1034: Trinocular head (30°, 0/100 beamsplitter, erect image) • MA814/05: Binocular head (30°) |
| Eyepieces |
• MA818: SWH 15X (FN 16) • MA819: SWH 20X (FN 12) • MA859: SWF 10X-F Focusing eyepiece |
| Objectives & Micrometers |
• MA874: Planachromat E100X Objective (NA 0.90) • MA738: Eyepiece micrometer for grain sizing |
| Stage Options |
• MA875: Attachable mechanical stage (112mm x 71mm movement) • MA876: Metal stage plate insert |
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
