Meiji Techno MT7500 Series Brightfield/Darkfield Metallurgical Microscope

List Price: $8,715.00

Starting at: $7,895.00

SKU: MT7520/MT7530

Availability: In stock

  • Incident light Brightfield/Darkfield microscope
  • Infinity Corrected Optical System
  • 4 Plan Epi BD Objectives
  • Binocular or trinocular
  • 50W halogen illumination
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

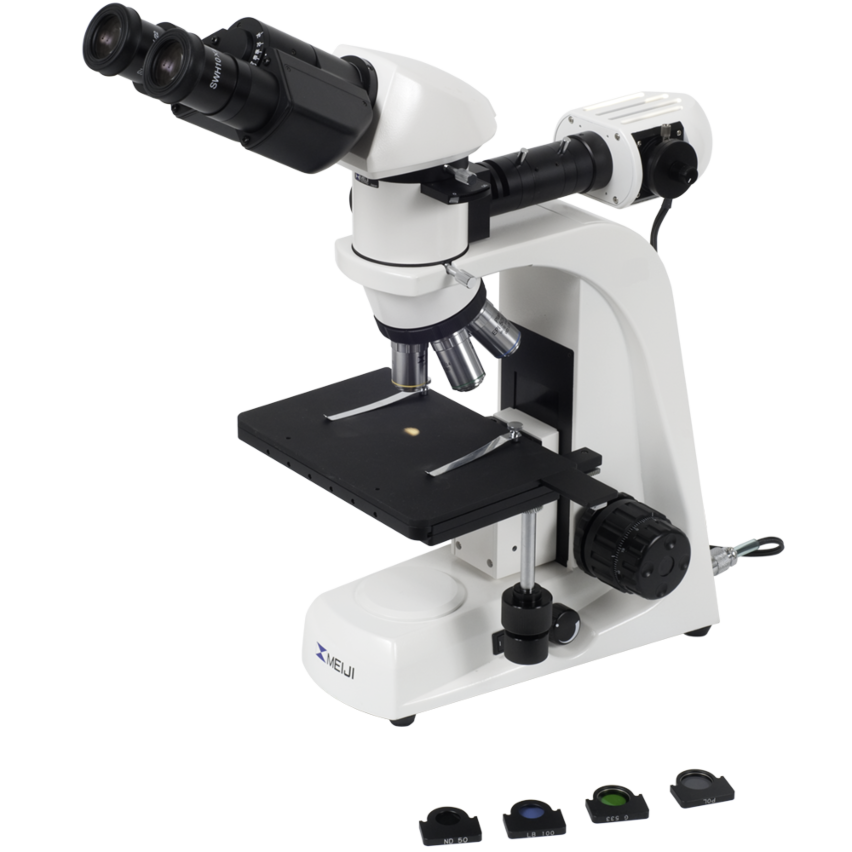

  • Meiji MT7500 Series Brightfield/Darkfield Metallurgical Microscope
  • Meiji MT7500 Series Brightfield/Darkfield Metallurgical Microscope Trinocular Head
  • Meiji MT7500 Series Brightfield/Darkfield Metallurgical Microscope eyepieces
  • Meiji MT7500 Series Brightfield/Darkfield Metallurgical Microscope focus controls
  • Meiji MT7500 Series Brightfield/Darkfield Metallurgical Microscope objectives
Description

Summary

The MT7500 series are metallurgical microscopes purpose-built for incident (reflected) light and darkfield observation of opaque materials such as metals, minerals and crystalline samples.. Available in either binocular or trinocular format, they include Meiji's infinity corrected optical system with four Plan Epi BD objectives and two SWH 10x eyepieces for magnification levels of 50x, 100x, 200x and 500x. Lifetime Limited Warranty.

Optics

A Siedentopf-type binocular head is available in binocular or trinocular format. The oculars are inclined at 30° with a diopter on the left ocular for individual eye focusing. Interpupillary adjustment is 53mm - 75mm. Two SWH 10x eyepieces (FN 22) are included. The four objectives are infinity corrected Plan Epi BD5x, BD10x, BD20x, and BD50x set in a ball-bearing mounted quintuple nosepiece.

An 80/20 beam splitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) 30mm ID eyetube. Please note that the trinocular port requires an adapter appropriate for your camera.

Stage & Focus

The mechanical stage is ceramic-coated and measures 191mm x 126mm. The range of movement is 100mm x 100mm and is includes low position drop down coaxial controls for X-Y movement. Focus controls are dual-sided with coaxial coarse/fine knobs.

Illumination

Vertical Koehler illuminator with 12V 50W halogen lamp with clear blue, clear green, ND 50 neutral density filter and polarizing filters in metal mounts for brightfield or reflected light polarization. Universal 110-240V voltage.

Accessories

Illuminator, 4 filters, manual, dust cover
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MT7520 Binocular

    MT7530 Trinocular

    MT7520EH Ergonomic Binocular

    MT7530EH Ergonomic Trinocular
    SKU MT7520MT7530MT7520EHMT7530EH
    Warranty
    Notes
    Product Weight 14.000014.000014.000014.0000
    Product Length 255 mm255 mm255 mm255 mm
    Product Width 195 mm195 mm195 mm195 mm
    Product Height 395 mm395 mm395 mm395 mm
    System
    System Type Brightfield, MetallurgicalBrightfield, Darkfield, Polarizing, MetallurgicalBrightfield, MetallurgicalBrightfield, Metallurgical
    Optical Design DIN 160mmDIN 160mmDIN 160mmDIN 160mm
    Head
    Head Type BinocularTrinocularBinocular, ErgonomicTrinocular, Ergonomic
    Ocular Angle 30°30°Variable ErgonomicVariable Ergonomic
    Diopter Adjustment DualDualDualDual
    Interpupillary Adjustment Linear SlidingLinear SlidingLinear SlidingLinear Sliding
    Interpupillary Adjustment Range 52 – 72 mm52 – 72 mm52 – 72 mm52 – 72 mm
    View Orientation Inverted ViewInverted ViewInverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm23 mm23 mm
    Body
    Nosepiece Orientation Front-facingFront-facingFront-facingFront-facing
    Nosepiece Style Quadruple (4)Quadruple (4)Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYesYesYes
    Stage Type Fixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide Holder
    Stage Features Ceramic CoatedCeramic CoatedCeramic CoatedCeramic Coated
    Configuration
    Includes Eyepieces? YesYesYesYes
    Included Eyepiece Quantity 2222
    Included Eyepieces (X) 10X10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 50X50X50X50X
    Max Standard Mag 500X500X500X500X
    Included Objectives (Qty) 4444
    Objective Lens PlanPlanPlanPlan
    Included Objective Types Brightfield, Darkfield, MetallurgicalBrightfield, Darkfield, MetallurgicalBrightfield, Darkfield, MetallurgicalBrightfield, Darkfield, Metallurgical
    Condenser
    Condenser Type Abbe BrightfieldAbbe BrightfieldAbbe BrightfieldAbbe Brightfield
    Condenser Features Achromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm1.25 mm1.25 mm
    Filter Diameter 30 mm30 mm30 mm30 mm
    Illumination
    Illumination Type HalogenHalogenHalogenHalogen
    Illumination Style TransmittedTransmittedTransmittedTransmitted
    Collector Type KohlerKohlerKohlerKohler
    Collector Features Field DiaphragmField DiaphragmField DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogenHalogenHalogen
    Transmitted Light Specification 12V 50W12V 50W12V 50W12V 50W
    Transmitted Light Control VariableVariableVariableVariable
    Power Supply 120V AC120V AC120V AC120V AC
    Fuse 3A3A3A3A
    Accessories
    Included Extras Dust CoverDust CoverDust CoverDust Cover
