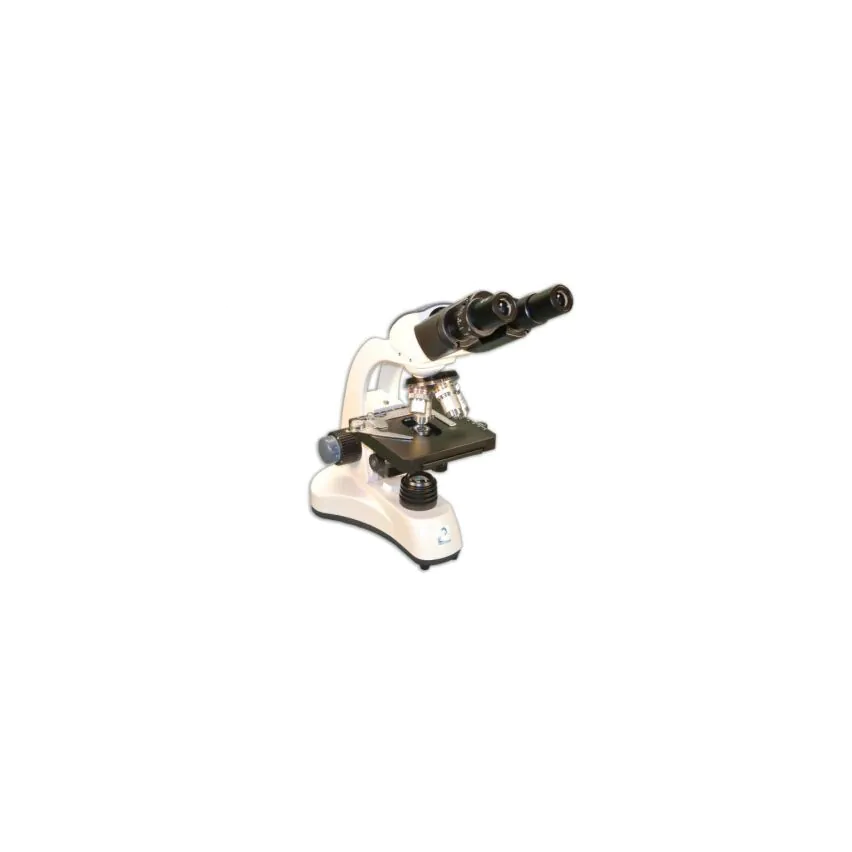

Meiji Techno MT-14 Binocular LED Compound Student Microscope

List Price: $650.00

Our Price: $595.00

SKU: MT-14

Availability: In stock

  • Semi-Plan 4X, 10X, S40X, S100X Objectives
  • Battery-powered for convenient portability
  • LED variable intensity illumination
  • Forward-facing ball-bearing nosepiece
  • ABBE 1.25 NA condenser with iris diaphragm
  • Ergonomic design for ease of use
  • Recommended for classroom use

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

Description

New Student Microscope

Summary

The new Meiji MT-14 Student compound microscope brings a fresh, clean design to the biology and life sciences classroom. These easy-to-use, competitively-priced microscopes feature Meiji Semi-Plan optical quality and cool, crisp LED illumination to help you maximize your student's learning experience. Battery-powered portability and rugged ergonomics ensure years of dependable service in the grade school, high school or teaching laboratory.

Optics

The MT-14 microscope includes a binocular head with the oculars inclined at a comfortable 30°. The DIN 10X WF eyepieces include a pointer for easy reference and correlation. The optical system includes four Semi-Plan Achromatic objectives (4X, 10X, S40X, S100X) set in a forward-facing ball-bearing-mounted nosepiece for ease of access to the slide and objectives.

Stage & Focus

The ceramic coated, right-handed flat top stage measures 123mm x 119mm and features an integrated mechanical stage, along with coaxial coarse-fine focus knobs with friction adjustment and graduations to 2-micron precision.

Condenser & Illumination

An Abbe 1.25 NA Condenser with height adjustment is included, along with 1W LED variable-intensity illumination with power supplied by internal batteries or a standard 110V AC power cord.

Accessories

Eyeshields, Manual, AC adapter, dust cover. 2-Year Warranty.
Specifications

MT-14 Binocular LED Compound Student Microscope
General
SKU MT-14
Short Description
  • Semi-Plan 4X, 10X, S40X, S100X Objectives
  • Battery-powered for convenient portability
  • LED variable intensity illumination
  • Forward-facing ball-bearing nosepiece
  • ABBE 1.25 NA condenser with iris diaphragm
  • Ergonomic design for ease of use
  • Recommended for classroom use
System
System Type Brightfield, Portable
Optical Design DIN 160mm
Head
Head Type Binocular
Head Rotation 360 Degrees
Ocular Angle 45°
View Orientation Upright View
Ocular Tube Diameter 23 mm
Body
Nosepiece Orientation Front-facing
Nosepiece Style Quadruple (4)
Focus Controls Coarse & Fine, Coaxial
Focus Mechanism Rack & Pinion
Focus Control Location Dual Ambidextrous
Focus Controls Graduated? Yes
Stage Type Mechanical XY
Stage Features Slide Clips
Stage Dimensions 123mm X 119mm
Configuration
Includes Eyepieces? Yes
Included Eyepiece Quantity 2
Included Eyepieces (X) 10X
Eyepiece Style WF Widefield (FN 18mm)
Includes Eyecups? Yes
Min Standard Mag 40X
Max Standard Mag 1000X
Objectives
Included Objectives (Qty) 4
Objective Lens Semi-Plan
Included Objective Types Brightfield
Objective 1 Description S. Plan 4X / 0.13
Objective 2 Description S. Plan 10X / 0.25
Objective 3 Description S. Plan 40X / 0.65
Objective 4 Description S. Plan S100X Oil / 1.25
Condenser
Condenser Type Abbe Brightfield
Condenser Features Achromatic, Iris Diaphragm
Condenser N.A. 1.25 mm
Illumination
Illumination Type LED
Illumination Style Transmitted
Collector Type Simple
Transmitted Light Type LED
Transmitted Light Control Variable
Power Supply Rechargeable Batteries (AA) or Universal Switching 100V-240V AC
Compatibility
Imaging Compatibility (with adapters) 23mm
Accessories
Included Extras Dust Cover
